Excavators

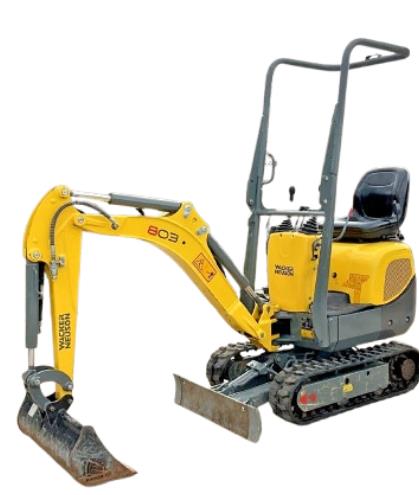

1-TON MINI EXCAVATOR


	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

Manufacturer: WACKER

Model: 803

Daily: $300.00

Weekly: $1,165.00

Monthly: $2,000.00

Quantity: for a period of
day(s) week(s) month(s)

Additional Information

OPERATING PERFORMANCE:
Operating Weight 1,150 kg
Bucket Capacity (Heaped) 0.022 m3
Slew Speed 10.0 min-1
Travel Speed
1st 2.0 km/h
2nd 3.7 km/h
Gradeability 15
Ground Pressure 28.0 kPa
Maximum Bucket Breakout Force 11.2 kN
Maximum Arm Digging Force 6.4 kN
Traction Force 12.8 kN
Boom Swing Angle (Left/Right) 85 / 85
ENGINE
Model Kubota / D722-E4B
Rated Output (ISO 14396) 8.8 kW/2,200 min-1
Maximum Torque 36.0 Nm/1,900 min-1
Displacement 719 ml
Alternator 12V - 0.48 kW
Battery (IEC 60095-1) 12V - 36 A h
FLUID CAPACITY
Engine Lubrication 2.8 L
Cooling System 4.0 L
Fuel Tank Capacity 12.0 L
Hydraulic Reservoir Capacity 9.0 L
Hydraulic System Capacity 15.0 L
Dual side entry Retractable Undercarriage Minimal Tail Swing Foldable ROPS
HYDRAULIC SYSTEM
P1, P2 Gear Pump
Flow Rate 11.1 L/min
Relief Pressure 18.2 MPa
P3 Gear Pump
Flow Rate 5.8 L/min
Relief Pressure 3.4 MPa
Service Port 1
Flow Rate 22.0 L/min
Hydraulic Pressure 18.2 MPa
SAFETY and HEALTH
Vibration Levels
Hand / Arm < 2.5 m/s2
Body < 0.5 m/s2
Noise Level
Sound Power Level LWA 91 dB
ENGINE:
- EU Stage V / EPA Tier 4
Emission Compliant
- Double Element, Air Cleaner
- Automatic Fuel Bleed System
- Engine Preheat
- Extended Life Coolant
- High Capacity Fuel Filters
ELECTRICAL:
- Multi-Informational Display
- Warning Lamps / Indicators
- 12 volt System with 40 amp
Alternator
- 1 Working Light on Boom
- Hour Meter
- Travel Alarm (optional)
- Additional Power Socket for
Beacon Lump (optional)
- TSS (Takeuchi Security System,
Immobilizer) (optional)*
UNDERCARRIAGE AND FRAME
- Hydraulically Retractable Track
Frame (750 mm to 1,020 mm)
- 2-Speed Travel
- Backfill Blade with Pin-on
Extensions
- Protective Counterweight
- 180 mm Rubber Crawlers
HYDRAULIC
- Hydraulic Joystick Controls
- Tandem Gear Pumps
- Auxiliary Hydraulic Circuit Plumbed
to Arm
- Hydraulic Selector Valve
(1-way / 2-way)
- Pilot Accumulator
- Hydraulic Tank with Fluid Level Sight
Gauge
- Foot Pedal Control for Service Port 1
- Hydraulics with Detent for Hand Tools
OPERATOR S STATION
- ROPS / TOPS Two Post
Foldable Frame
- 2 Retractable Seat Belt
- Adjustable Lever Stand (optional)
Excellent Serviceability Wraparound Counterweight
WORKING EQUIPMENT
- Independent Mono Boom Swing
- Cushioned Boom Cylinder
- Top Mount Boom Cylinder
- 880 mm Arm
- Pattern Change Valve (ISO or G)

Also check the following item(s) related to the above:

14' Single-Axle Flatbed Trailer

* Prices are subject to change.

* Please call us with any questions about our 1 ton mini excavator rentals in McAllen, Harlingen, Brownsville, Houston, San Antonio, New Braunfels, & San Marcos TX.
