Compaction Rollers

66IN SMOOTH/PAD RIDE-ON ROLLER

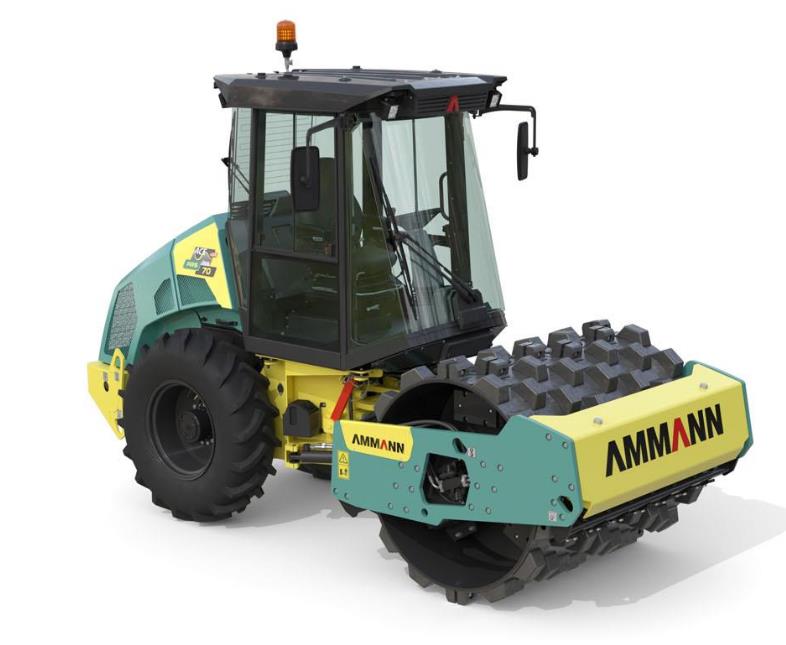

	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

Manufacturer: AMMANN

Model: ARS 70

Daily: $580.00

Weekly: $1,700.00

Monthly: $4,515.00

Quantity: for a period of
day(s) week(s) month(s)

Additional Information

The ARS 70 is Ammann s medium soil drum roller and one of the most maneuverable machines on the market. It is 16 per cent shorter than the previous generation and features a tight turning radius of 2580 mm.
The machine is extremely compact because of its innovative design, which efficiently positions the engine, coolers, liquid tanks and hydraulics in the engine compartment. The ARS 70 also is known for its visibility, fuel efficiency and climbing ability.
The compactor offers a wide range of variable frequencies for many applications and varied materials.
The ARS 70 also features ECOdrop, which reduces ownership costs through an increase in efficiency, a decrease in fuel consumption and a reduction in required fluids for hydraulics and the vibratory drum system.
ARS 70 SOIL COMPACTOR (EU Stage V / U.S. EPA Tier 4 Final)
DIMENSIONS
A = MACHINE LENGTH 4425 mm (174.4 in)
A1 = MACHINE LENGTH (BLADE) 4985 mm (196.3 in)
B = WHEELBASE 2300 mm (90.6 in)
C = MACHINE HEIGHT 2860 mm (112.6 in)
D = MACHINE HEIGHT (OPERATOR SEAT) 2285 mm (90 in)
E = DRUM WIDTH 1680 mm (66.1 in)
F = MACHINE WIDTH 1790 mm (70.5 in)
F1 = MACHINE WIDTH (BLADE) 2077 mm (81.8 in)
G = CURB CLEARANCE 382 mm (15 in)
H = GROUND CLEARANCE 380 mm (15 in)
I = DRUM DIAMETER 1225 mm (48.2 in) /*1377 mm (54.2 in)
J = DRUM THICKNESS 18 mm (0.7 in) /*15 mm (0.6 in)
*PD
ENGINE
MANUFACTURER Kubota V3307-CR-TE5
POWER ACCORDING TO ISO 14396 55.4 kW (75 HP)
EXHAUST GAS AFTER-TREATMENT EGR+DOC+DPF
EU Stage V / U.S. EPA Tier 4 Final
WEIGHT & OPERATING CHARACTERISTICS
HX PD HXPD
OPERATING WEIGHT 6490 kg
(14,310 lb) 6490 kg
(14,310 lb) 6910 kg
(15,230 lb) 6910 kg
(15,230 lb)
MAXIMUM WEIGHT 8400 kg
(18,520 lb) 8400 kg
(18,520 lb) 8820 kg
(19,440 lb) 8820 kg
(19,440 lb)
STATIC LINEAR LOAD 23.2 kg/cm
(129.9 lb/in) 23.2 kg/cm
(129.9 lb/in)
PAD CONTACT SURFACE 82,5 cm
(12,8 sq in) 82,5 cm
(12.8 sq in)
PAD HEIGHT 80 mm
(3.1 in) 80 mm
(3.1 in)
MAX. TRANSPORT SPEED 12 km/h
(7.5 MPH) 12 km/h
(7.5 MPH) 12 km/h
(7.5 MPH) 12 km/h
(7.5 MPH)
MAX. WORKING SPEED 6 km/h
(3.7 MPH) 6 km/h
(3.7 MPH) 6 km/h
(3.7 MPH) 6 km/h
(3.7 MPH)
CLIMBING ABILITY WITHOUT / WITH VIBRATION 52% / 48% 68% / 52% 54% / 51% 64% / 51%
TURNING RADIUS (INNER) 2580 mm
(101.6 in) 2580 mm
(101.6 in) 2580 mm
(101.6 in) 2580 mm
(101.6 in)
COMPACTION FORCES
PD
FREQUENCY I 25 34 Hz (1500 2040 vpm) 25 33 Hz (1500 1980 vpm)
FREQUENCY II 25 36 Hz (1500 2160 vpm) 25 35 Hz (1500 2100 vpm)
AMPLITUDE I 1.6 mm (0.063 in) 1.65 mm (0.065 in)
AMPLITUDE II 0.7 mm (0.028 in) 0.71 mm (0.028 in)
CENTRIFUGAL FORCE I 71 131 kN (15,961 29,450 lbf) 90 156 kN (20,232 35,070 lbf)
CENTRIFUGAL FORCE II 31 64 kN (6969 14,388 lbf) 38 80 kN (8542 17,984 lbf)
MISCELLANEOUS
BRAKES OPERATING Hydrostatic
BRAKES PARKING Multiple-disc spring brake
BRAKES EMERGENCY Multiple-disc spring brake
FUEL TANK CAPACITY 130 l (34.34 gal)
ARTICULATION ANGLE 30
OSCILLATION ANGLE 9

* Prices are subject to change.

* Please call us with any questions about our 66in smooth/pad ride on roller rentals in McAllen, Harlingen, Brownsville, Houston, San Antonio, New Braunfels, & San Marcos TX.
