Compaction Rollers

84IN SMOOTH RIDE-ON ROLLER

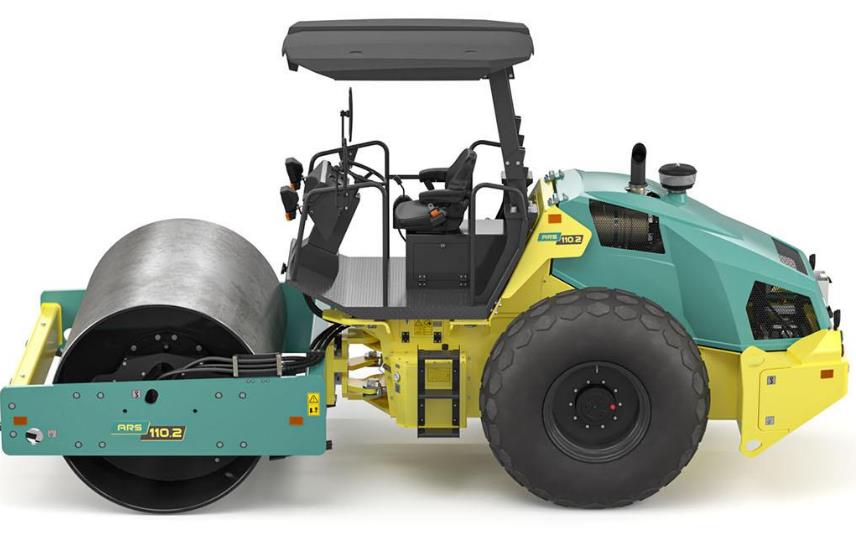

	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

Manufacturer: AMMANN

Model: ARS 110

Daily: $787.00

Weekly: $2,145.00

Monthly: $5,600.00

Quantity: for a period of
day(s) week(s) month(s)

Additional Information

The compact design of the Ammann ARS 110 Soil Compactor improves maneuverability and flexibility, making the machines exceptionally productive.
Safety is maximized through a cab that provides operators with 360 visibility and an intuitive, conveniently located control display.
The machine is extremely compact because of its innovative design, which efficiently positions the engine, coolers, liquid tanks and hydraulics in the engine compartment. The ARS 110 also is known for its visibility, fuel efficiency and climbing ability.
The proprietary ACEforce Intelligent Compaction system, which offers absolute compaction measurement and optional documentation, improves efficiency and quality. The availability of a variable range of frequencies make the machine a perfect fit for many applications and varied materials.
SPECIFICATIONS:
ARS 110 (EU Stage IV / U.S. EPA Tier 4 Final)

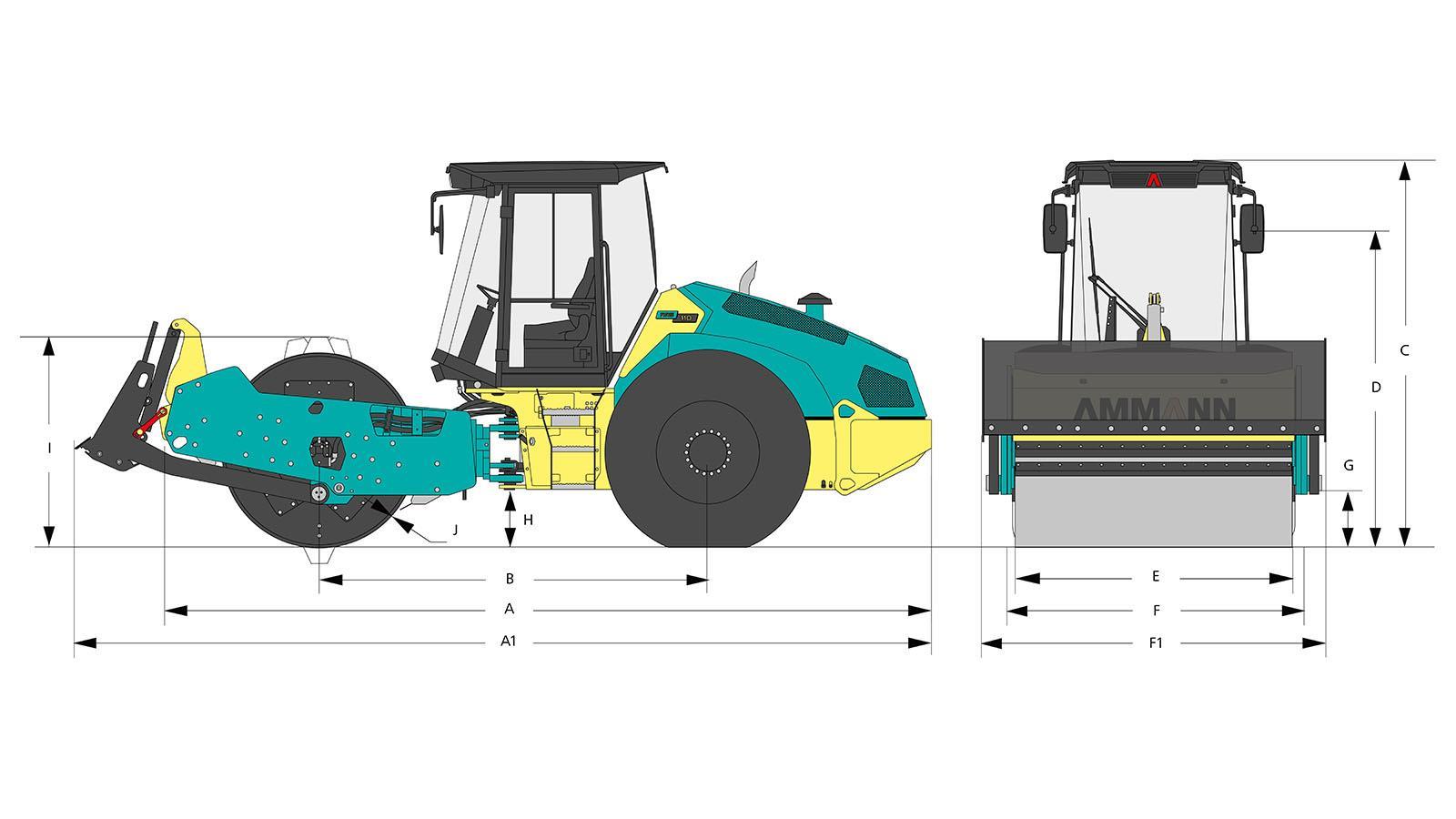

DIMENSIONS
A = MACHINE LENGTH 5900 mm (232.3 in)
A1 = MACHINE LENGTH (BLADE) 6610 mm (260 in)
B = WHEELBASE 2990 mm (117.7 in)
C = MACHINE HEIGHT 2970 mm (116.9 in)
D = MACHINE HEIGHT (OPERATOR SEAT) 2200 mm (86.6 in)
E = DRUM WIDTH 2130 mm (83.9 in)
F = MACHINE WIDTH 2260 mm (89 in)
F1 = MACHINE WIDTH (BLADE) 2440 mm (96 in)
G = CURB CLEARANCE 400 mm (15.7 in)
H = GROUND CLEARANCE 430 mm (16.9 in)
I = DRUM DIAMETER 1500 mm (59.1 in) /*1694 mm (66.7 in)
J = DRUM THICKNESS 25 mm (1 in) /*20 mm (0.8 in)
*PD
ENGINE
MANUFACTURER Deutz TCD 3.6L4
POWER ACCORDING TO ISO 14396 100 kW (134 HP)
EXHAUST GAS AFTER-TREATMENT EGR+DOC+SCR
EU Stage IV / U.S. EPA Tier 4 Final
WEIGHT & OPERATING CHARACTERISTICS HX PD HXPD
OPERATING WEIGHT 10 860 kg
(23 940 lb) 10 950 kg
(24 140 lb) 11 485 kg
(25 320 lb) 11 575 kg
(25 520 lb)
MAXIMUM WEIGHT 13 430 kg
(29 610 lb) 13 520 kg
(29 810 lb) 12 540 kg
(27 650 lb) 12630 kg
(27 840 lb)
STATIC LINEAR LOAD 30.3 kg/cm
(169.6 lb/in) 30.6 kg/cm
(171.4 lb/in)
PAD CONTACT SURFACE 120 cm
(18.6 sq in) 120 cm
(18.6 sq in)
PAD HEIGHT 100 mm
(3.9 in) 100 mm
(3.9 in)
MAX. TRANSPORT SPEED 12 km/h
(7.5 MPH) 10 km/h
(6.2 MPH) 12 km/h
(7.5 MPH) 10 km/h
(6.2 MPH)
MAX. WORKING SPEED 7.6 km/h
(4.7 MPH) 5.1 km/h
(3.2 MPH) 7.6 km/h
(4.7 MPH) 5.1 km/h
(3.2 MPH)
CLIMBING ABILITY WITHOUT /WITH VIBRATION 52% / 50% 67% / 55% 54% / 50% 67% / 55%
TURNING RADIUS (INNER) 3625 mm
(142.7 in) 3625 mm
(142.7 in) 3625 mm
(142.7 in) 3625 mm
(142.7 in)
COMPACTION FORCES PD
FREQUENCY I 25 31 Hz
(1500 1860 vpm) 25 31 Hz
(1500 1860 vpm)
FREQUENCY II 25 35 Hz
(1500 2100 vpm) 25 35 Hz
(1500 2100 vpm)
AMPLITUDE I 1.95 mm (0.077 in) 1.7 mm (0.067 in)
AMPLITUDE II 0.83 mm (0.033 in) 0.72 mm (0.028 in)
CENTRIFUGAL FORCE I 186 285 kN
(41,814 64,071 lbf) 186 285 kN
(41,814 64,071 lbf)
CENTRIFUGAL FORCE II 79 155 kN
(17,759 34,845 lbf) 79 155 kN
(17,759 34,845 lbf)
MISCELLANEOUS
BRAKES OPERATING Hydrostatic
BRAKES PARKING Multiple-disc spring brake
BRAKES EMERGENCY Multiple-disc spring brake
FUEL TANK CAPACITY 345 l (91.1 gal)
ARTICULATION ANGLE 36
OSCILLATION ANGLE 10

* Prices are subject to change.
