Straight Boom Lifts

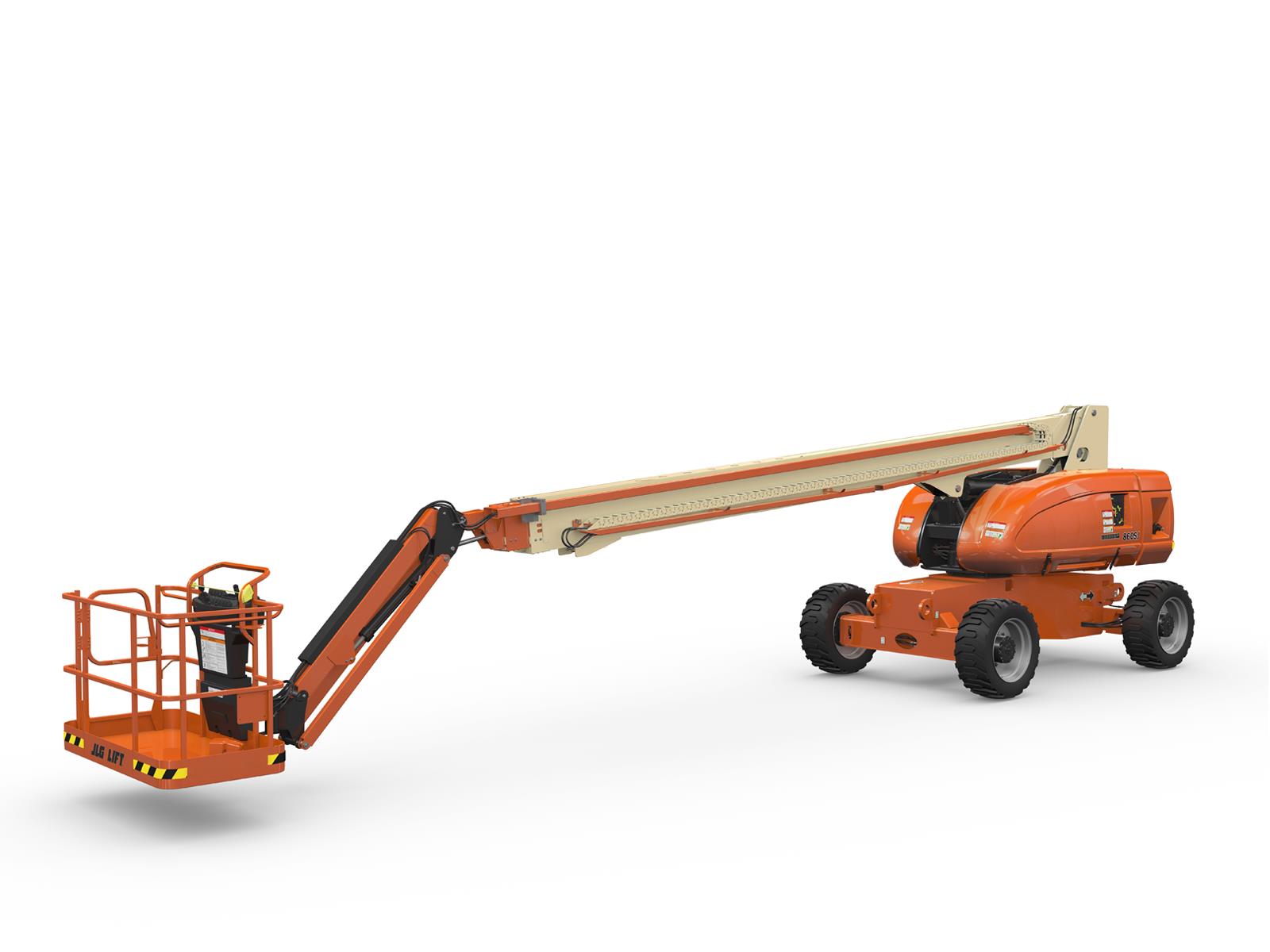

TELESCOPIC BOOM LIFT, 86'W/JIB 4x4 DIESEL


	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

Manufacturer: JLG INDUSTRIES

Model: 860SJ

Daily: $1,025.00

Weekly: $2,300.00

Monthly: $5,625.00

Quantity: for a period of
day(s) week(s) month(s)

Additional Information

Key Specs
Platform Height: 86 ft / 26.21 m
Platform Capacity - Restricted: 750 lb / 340.19 kg
Platform Capacity - Unrestricted: 500 lb / 226.80 kg
Horizontal Outreach: 75 ft / 22.86 m
Key Features
Reach full elevation in less than 70 seconds
Advanced Design Electronics System reduces your costs by increasing fuel efficiency and reducing emissions
Equipped with a fuel-efficient Tier 4 engine
Power Source
Auxiliary Power 12 Volts DC
Capacity - Fuel Tank 31 gal. / 117.35 L
Engine Type - Diesel DEUTZ TD 2.9L Tier 4 Final 67 hp
Engine Type - Dual Fuel Ford MSG425 84hp
Performance
Axle Oscillation 8 in. / 0.2 m
Drive Speed - 2WD 3.5 mph / 5.63 km/h
Drive Speed - 4WD 3.5 mph / 5.63 km/h
Gradeability - 2WD 25 %
Gradeability - 4WD 45 %
Platform Capacity - Restricted 750 lb / 340.19 kg
Platform Capacity - Unrestricted 500 lb / 226.80 kg
Swing 360 Degrees
Swing Type Continuous
Turning Radius - Outside 19 ft 8 in. / 5.99 m
Jib - Range of Articulation 130 Degrees
Dimensional Data
Ground Clearance 11 in. / 0.28 m
Machine Height 10 ft / 3.05 m
Machine Length 40 ft / 12.19 m
Machine Width 8 ft 2 in. / 2.49 m
Platform Dimension A 3 ft / 0.91 m
Platform Dimension B 8 ft / 2.44 m
Tailswing 4 ft 8 in. / 1.42 m
Tire Size 15-625 Foam Filled Lug Tread
Reach Specifications
Horizontal Jib Rotation 0 Degrees
Horizontal Outreach 75 ft / 22.86 m
Platform Height 86 ft / 26.21 m
General
Capacity - Hydraulic Reservoir 48 gal. / 181.70 L
Maximum Ground Bearing Pressure 81 psi / 5.67 Kg/cm2
Machine Weight 36888 lb / 16732.12 kg

* Prices are subject to change.

* Please call us with any questions about our telescopic boom lift 86 foot w/jib 4x4 diesel rentals in McAllen, Harlingen, Brownsville, Houston, San Antonio, New Braunfels, & San Marcos TX.
